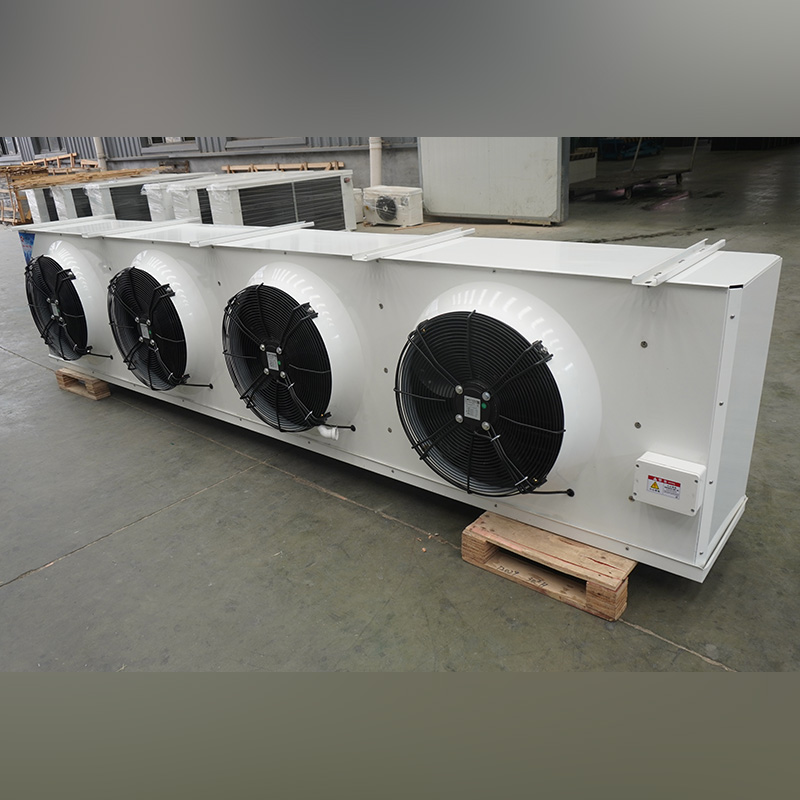

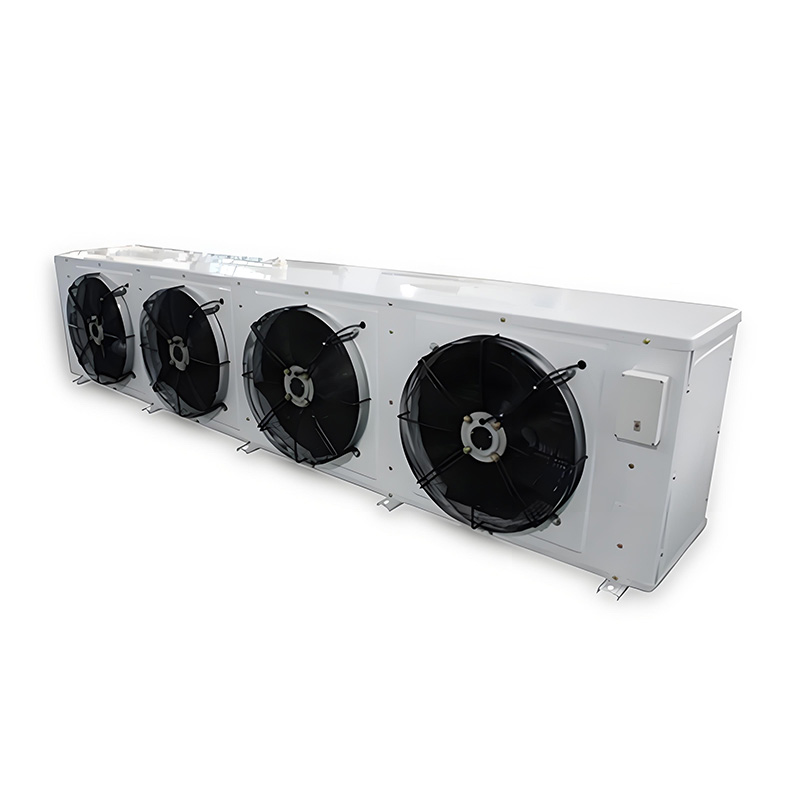

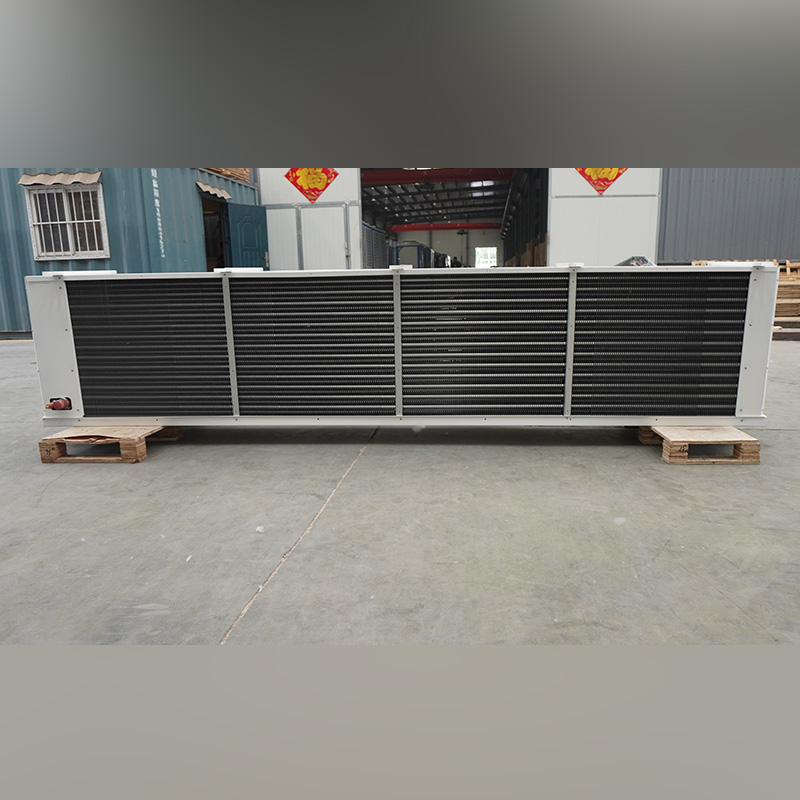

Ceiling-mounted Air Cooler

Ceiling mounted air coolers are suitable for small to medium-sized cold storage and logistics centers, and can meet the storage needs of fresh or frozen products.

Adopting European standard high-efficiency mold design for air coolers, with 9.52 internally threaded copper pipes arranged in a forked pattern and large wavy sine wave fins.

12.7 Internally threaded copper pipes are arranged in rows, with sine wave aluminum fins, suitable for most Freon refrigerants on the market.

Product Details Specs

吊顶式冷风机4.jpg 公司介绍2.jpg

Ceiling-Mounted Air Cooler Technical Specifications (MT)
model	Capacity		Storage capacity	Fan parameters				Electric Defrost		Take-over dimensions	External dimensions(BTH)	Weight
model	SC1	SC2	dm³	Fan Mot (n*Φmm)	Fan Power(W)	Fan Flow (m³/h)	Range(m)	Defrosting power of fins	Defrosting power of pan	Inlet/outlet (mm)	Lengthwidthheight(mm)	KG
LBMT-1.4/301E	2.0	1.4	0.9	1*Φ300	1*85	1400	7	0.5*2	0.25*1	Φ12/Φ22	870450430	19
LBMT-2.6/301E	3.8	2.6	1.7	1*Φ300	1*85	1400	6	0.5*3	0.25*1	Φ12/Φ22	870450430	21
LBMT-3.0/301E	4.4	3.0	2.2	1*Φ300	1*85	1340	6	0.5*3	0.25*1	Φ12/Φ22	870450430	22
LBMT-3.7/302E	5.3	3.7	2.2	2*Φ300	2*85	2800	7	0.9*2	0.45*1	Φ12/Φ22	1270450430	29
LBMT-4.2/401E	6.1	4.2	2.4	1*Φ400	1*205	2750	10	0.4*3	0.27*1	Φ12/Φ22	870510570	24
LBMT-5.0/401E	7.2	5.0	3.0	1*Φ400	1*205	2610	9	0.4*4	0.27*1	Φ12/Φ22	870510570	26
LBMT-7.1/402E	10.1	7.1	3.6	2*Φ400	2*205	5900	13	0.73*3	0.43*1	Φ12/Φ22	1420510570	38
LBMT-8.4/402E	12.2	8.4	4.9	2*Φ400	2*205	5500	12	0.73*3	0.43*1	Φ16/Φ28	1420510570	42
LBMT-9.9/402E	14.4	9.9	6.1	2*Φ400	2*205	5220	12	0.73*4	0.43*1	Φ16/Φ28	1420510570	46
LBMT-10.9/402E	16.0	10.9	7.3	2*Φ400	2*205	5100	11	0.73*5	0.43*1	Φ16/Φ28	1420510570	50
LBMT-12.1/403E	17.7	12.1	7.3	3*Φ400	3*205	8250	15	1.1*3	0.6*1	Φ16/Φ28	1970510570	54
LBMT-14.5/403E	21.1	14.5	9.1	3*Φ400	3*205	7830	15	1.1*4	0.6*1	Φ22/Φ28	1970510570	60
LBMT-16.2/403E	23.7	16.2	10.9	3*Φ400	3*205	7650	14	1.1*5	0.6*1	Φ22/Φ35	1970510570	66
LBMT-17.2/404E	25.4	17.5	11.4	4*Φ400	4*205	10600	17	1.4*3	0.76*1	Φ22/Φ35	2520510570	76
LBMT-18.6/404E	27.3	18.6	12.1	4*Φ400	4*205	10000	17	1.4*4	0.76*1	Φ22/Φ35	2520510570	80
LBMT-22.1/404E	32.5	22.1	14.6	4*Φ400	4*205	9540	17	1.4*5	0.76*1	Φ22/Φ35	2520510570	88
LBMT-23.9/405E	33.8	23.9	14.6	5*Φ400	5*205	14000	19	1.8*5	0.9*1	Φ22/Φ35	2870510570	100
LBMT-19.5/502E	28.4	19.5	11.7	2*Φ500	2*750	12960	26	1.4*6	0.7*1	Φ22/Φ35	2000640740	88
LBMT-22.3/502E	32.3	22.3	14.0	2*Φ500	2*750	11880	26	1.4*6	0.7*1	Φ28/Φ35	2000640740	96

Ceiling-Mounted Air Cooler Technical Specifications (DT)
model	Capacity		Storage capacity	Fan parameters				Electric Defrost		Take-over dimensions	External dimensions(BTH)	Weight
model	SC1	SC2	dm³	Fan Mot (n*Φmm)	Fan Power(W)	Fan Flow (m³/h)	Range(m)	Defrosting power of fins	Defrosting power of pan	Inlet/outlet (mm)	Lengthwidthheight(mm)	KG
LBDT-1.1/301E	1.4	1.1	1.7	1*Φ300	1*85	1400	6	0.5*3	0.25*1	Φ12/Φ22	870450430	21
LBDT-1.3/301E	1.7	1.3	2.2	1*Φ300	1*85	1340	6	0.5*3	0.25*1	Φ12/Φ22	870450430	22
LBDT-1.5/302E	1.9	1.5	2.2	2*Φ300	2*85	2800	7	0.9*2	0.45*1	Φ12/Φ22	1270450430	29
LBDT-1.8/401E	2.3	1.8	2.4	1*Φ400	1*205	2750	10	0.4*3	0.27*1	Φ12/Φ22	870510570	24
LBDT-2.2/401E	2.8	2.2	3.0	1*Φ400	1*205	2610	10	0.4*4	0.27*1	Φ12/Φ22	870510570	26
LBDT-3.0/402E	3.8	3.0	3.6	2*Φ400	2*205	5900	13	0.73*3	0.43*1	Φ12/Φ22	1420510570	38
LBDT-3.6/402E	4.6	3.6	4.9	2*Φ400	2*205	5500	13	0.73*3	0.43*1	Φ16/Φ28	1420510570	42
LBDT-4.4/402E	5.5	4.4	6.1	2*Φ400	2*205	5220	12	0.73*4	0.43*1	Φ16/Φ28	1420510570	46
LBDT-4.9/402E	6.2	4.9	7.3	2*Φ400	2*205	5100	11	0.73*5	0.43*1	Φ16/Φ28	1420510570	50
LBDT-5.2/403E	6.6	5.2	7.3	3*Φ400	3*205	8250	15	1.1*3	0.6*1	Φ16/Φ28	1970510570	54
LBDT-6.4/403E	8.0	6.4	9.1	3*Φ400	3*205	7830	15	1.1*4	0.6*1	Φ22/Φ28	1970510570	60
LBDT-7.2/403E	9.2	7.2	10.9	3*Φ400	3*205	7650	14	1.1*5	0.6*1	Φ22/Φ35	1970510570	66
LBDT-8.7/404E	10.9	8.7	12.1	4*Φ400	4*205	10920	18	1.4*4	0.76*1	Φ22/Φ35	2520510570	80
LBDT-7.6/404E	9.8	7.6	11.4	4*Φ400	4*205	11600	19	1.4*3	0.76*1	Φ22/Φ35	2520510570	76
LBDT-10.1/404E	12.8	10.1	14.6	4*Φ400	4*205	10440	17	1.4*5	0.76*1	Φ22/Φ35	2520510570	88
LBDT-11.4/405E	13.9	11.4	14.6	5*Φ400	5*205	15000	19	1.8*5	0.9*1	Φ22/Φ42	2870510570	100
LBDT-8.4/502E	10.8	8.4	11.7	2*Φ500	2*750	12960	26	1.4*6	0.7*1	Φ22/Φ35	2000640740	88
LBDT-9.8/502E	12.5	9.8	14.0	2*Φ500	2*750	12260	26	1.4*6	0.7*1	Φ28/Φ35	2000640740	96
